About this product

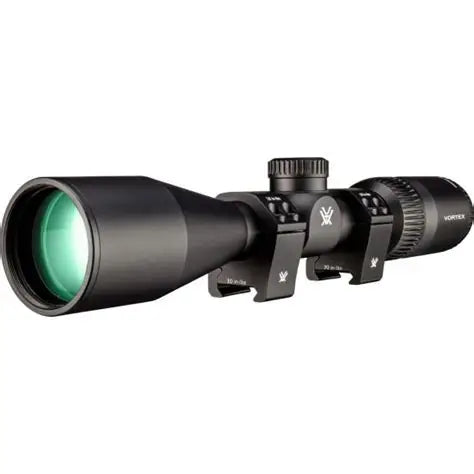

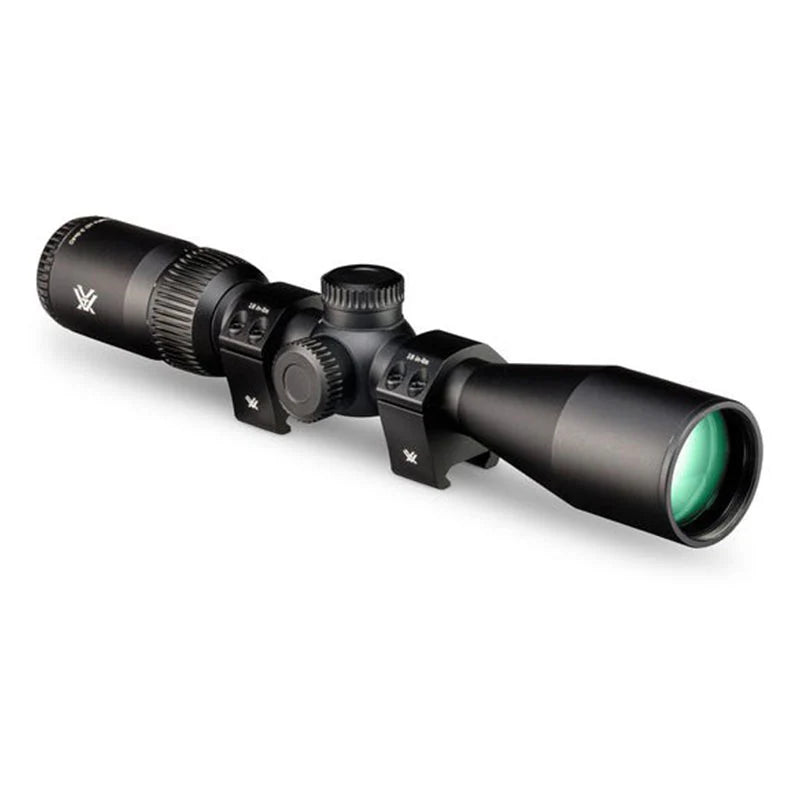

Every great story at deer camp starts with one shot—and the Triumph™ HD 3-9x40 riflescope delivers everything you need to make it yours. With impressive glass, solid construction, and included Hunter Rings, it’s built to get you field-ready fast, so you can zero in and head out to hunt. Made for hunters who know that a great shot can define the season—and the stories that come with it.
Triumph™ HD 3-9x40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.81 | 1.58 | 1.60 | 4.41 | 3.87 | 3.55 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.87 |
1.72 |
Specifications
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.9" |
| Field of View | 39.1' - 12.7' @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 55 MOA |
| Max Windage Adjustment | 55 MOA |
| Parallax Setting | 100 yds. |
| Length | 11.8" |
| Weight | 16.5 oz. |
