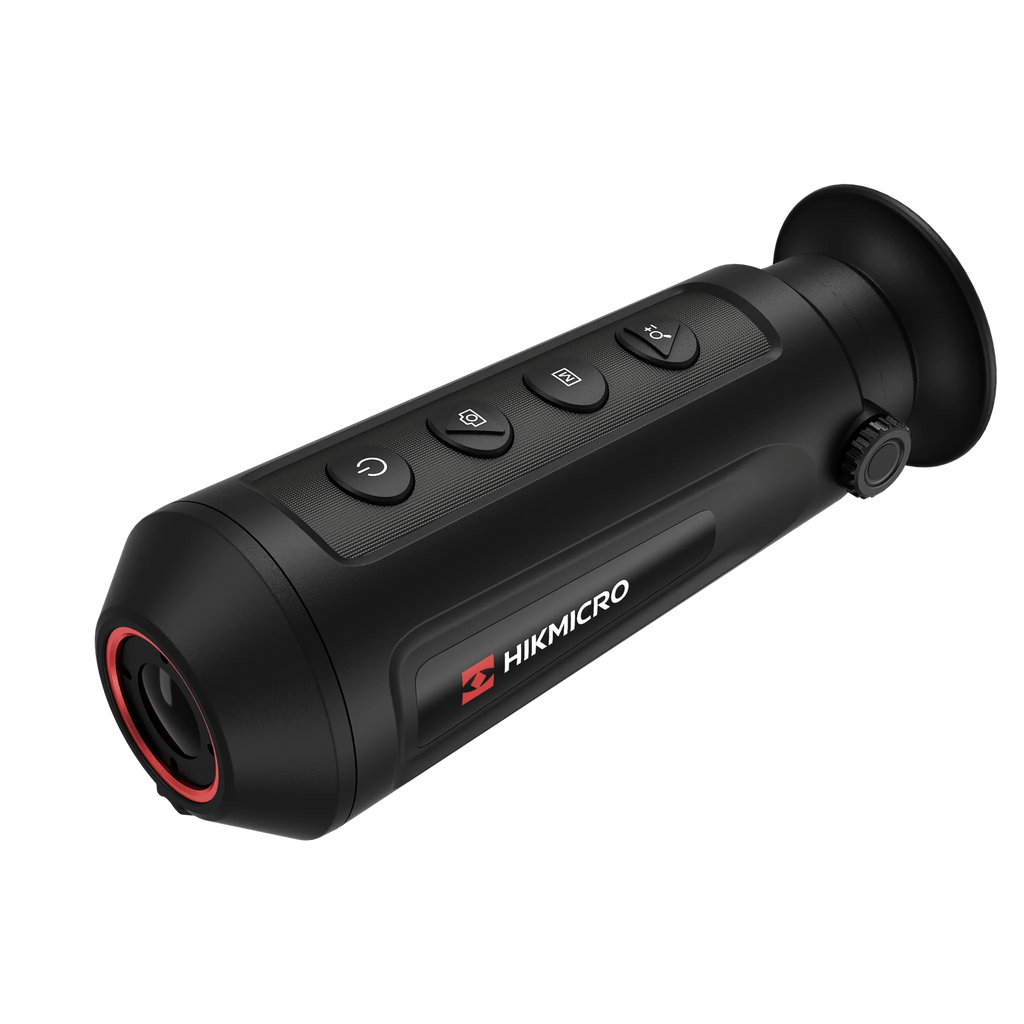

The HIKMICRO LYNX S LE15S Thermal Monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, law enforcement and search and rescue.
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 15 mm, F1.0 |
| Detection Range | 750 m |
| Focus Mode | Focus Free |
| Min. Focusing Distance | 10 m |
| Magnification | 2.2× to 17.6× (8×) |
| Field of View(H × V), | 11.7° × 8.8° / 20.5 m × 15.4 m |
| Degrees / m @100 m | |
| Image Display | |
| Display | 800 × 600, 0.32-inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 20 mm |
| Eye Relief | 6 mm |
| Diopter (Range) | -5D to +4D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in memory module (8 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 8 hours continuous running with hotspot function off (@25°C) |
| 6 hours continuous running with hotspot function on (@25°C) | |
| Type-C Power Supply | DC 5 V/2 A Supports External Power Supply |
| General | |
| Protection Level | IP67 |
| Dimension | 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”) |
| Working Temperature | - 20°C to 55°C (-4°F to 131°F) |
| Weight | 280 g (0.62 lbs) |
